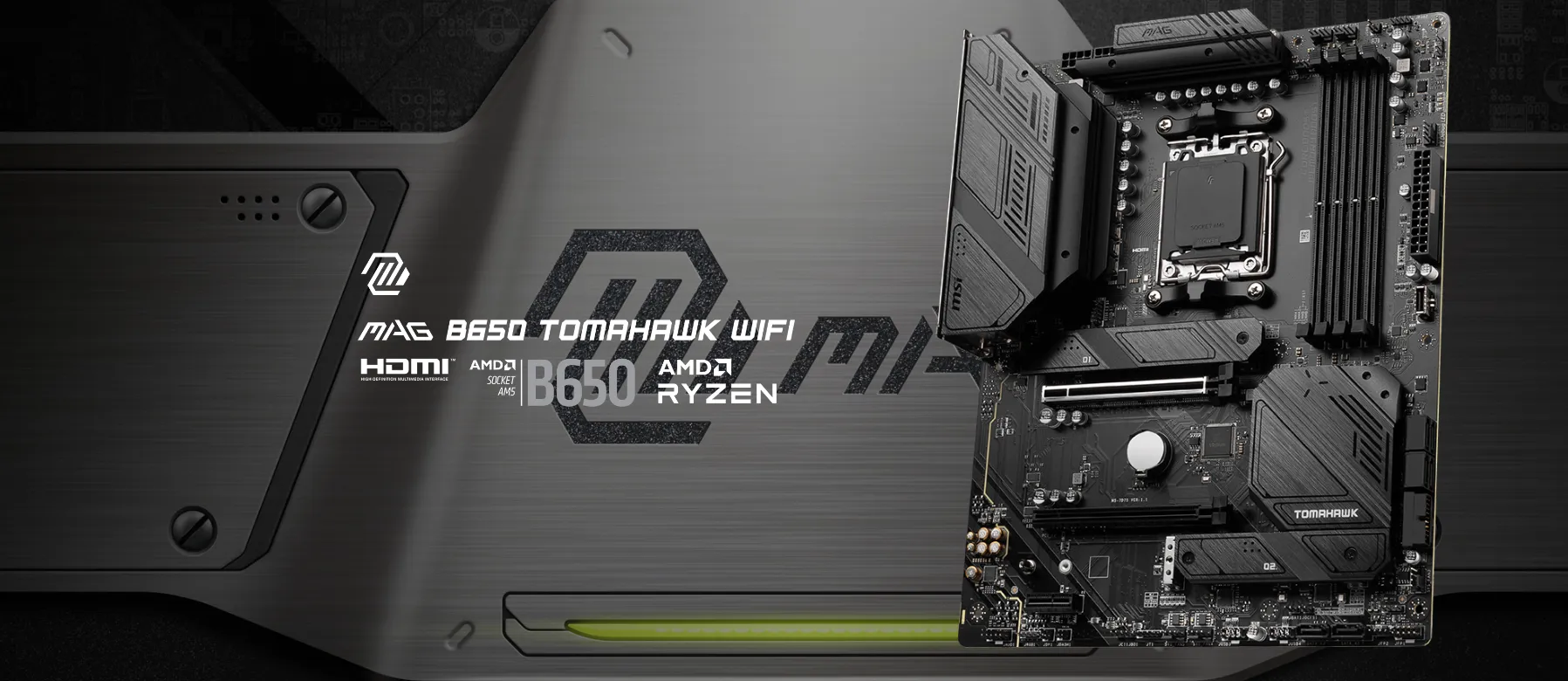

MSI MAG B650 Tomahawk WiFi Gaming Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, ATX)

MSI MAG B650 Tomahawk WiFi Gaming Motherboard (ATX, 11th/10th Gen Intel Core, LGA 1200 Socket, DDR5, CFX, M.2 Slots, USB 3.2 Gen 2, 2.5G LAN, DP/HDMI, Wi-Fi 6E, Mystic Light RGB)

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 6400+(OC) MHz

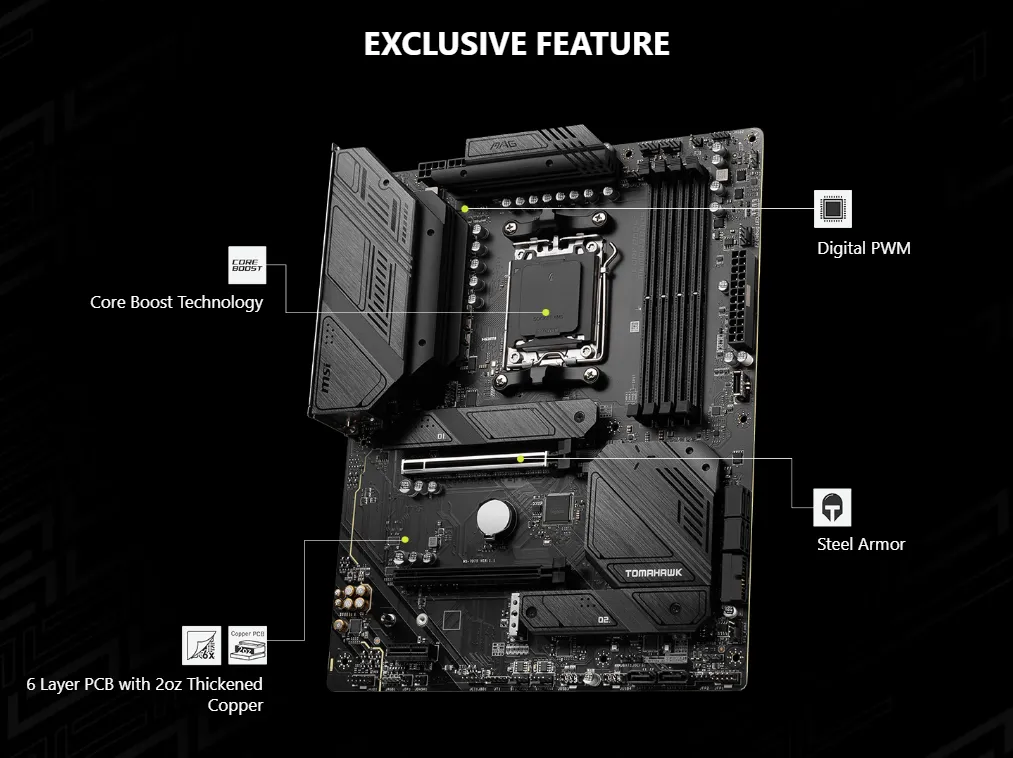

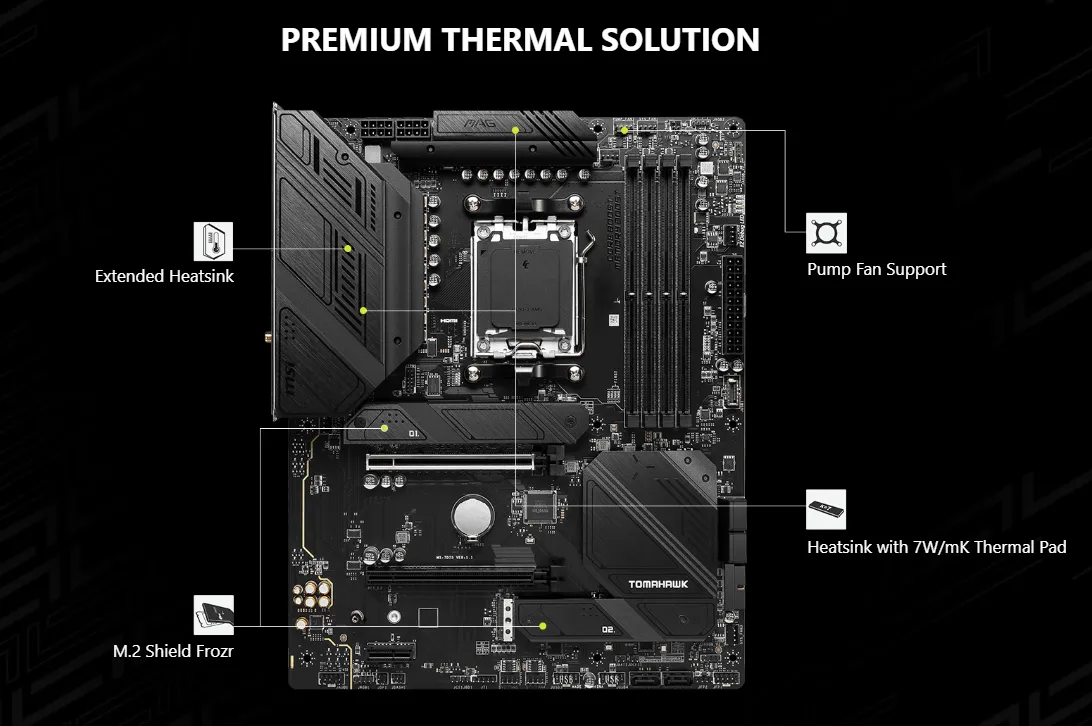

• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

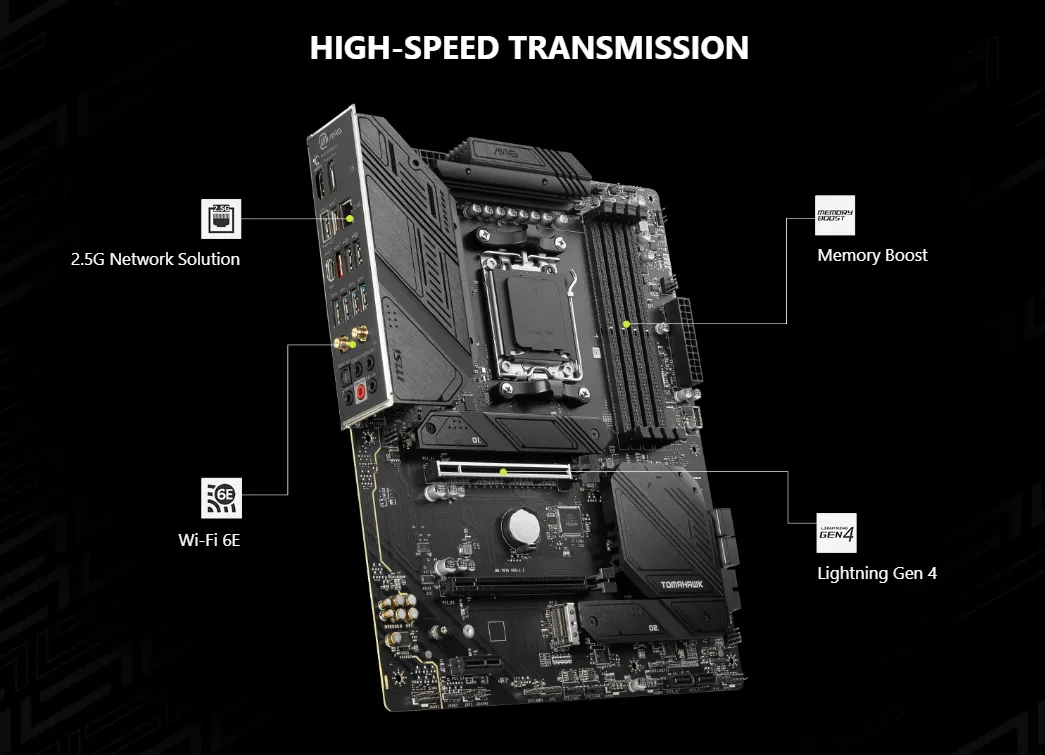

• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS

Chipset

• AMD B650

CPU Support:

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Socket AM5

Memory:

• 4x DDR5, Maximum Memory Capacity 128GB
• Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

Onboard Graphics

• 1x HDMI™
• 1x DisplayPort
• Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
• Support DP 1.4, maximum resolution of 8K 60Hz*

Expansion Slot

• 2x PCI-E x16 slot
• Support x16/ x4
• 1x PCI-E x1 slot
• PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 3x M.2 slot
• M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 6x SATA 6G port

Raid

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 3x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)
• 1x USB 3.2 Gen2x2 Type C (Rear)

LAN

• Realtek® RTL8125B 2.5Gbps LAN

Wireless / Bluetooth

• AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
• Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2**

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0
• 2x USB 3.2 Gen1 Type A
• 1x USB 3.2 Gen2 Type C

LED Feature

• 4x EZ Debug LED

Back Panel Ports

• DisplayPort 1.4
• 2.5G LAN Port
• USB 2.0 Port
• USB 3.2 Gen 1 5Gbps Type-A
• Wi-Fi / Bluetooth Antenna
• HD Audio Connectors
• Flash BIOS Button
• HDMI™ 2.1 Port
• USB 3.2 Gen 2 10Gbps Type-A
• USB 3.2 Gen 2×2 20Gbps Type-C
• Optical S/PDIF OUT

Operating System

• Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension

• ATX 243.84mmx304.8mm
