GIGABYTE Z790 AORUS Elite AX (LGA 1700/ Intel Z790/ ATX/ DDR5/ Quad M.2/ PCIe 5.0/ USB 3.2 Gen2X2 Type-C/Intel WiFi 6E/ 2.5GbE LAN/Q-Flash Plus/PCIe EZ-Latch/Gaming Motherboard)

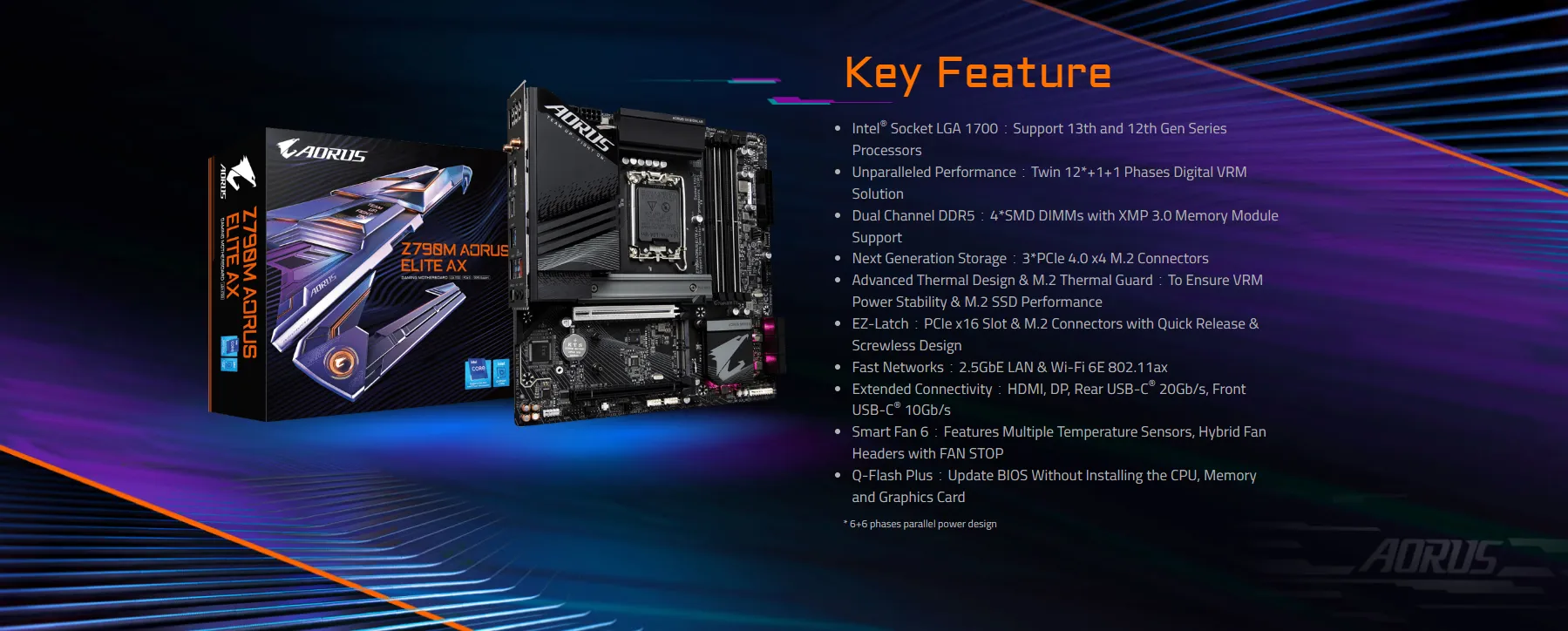

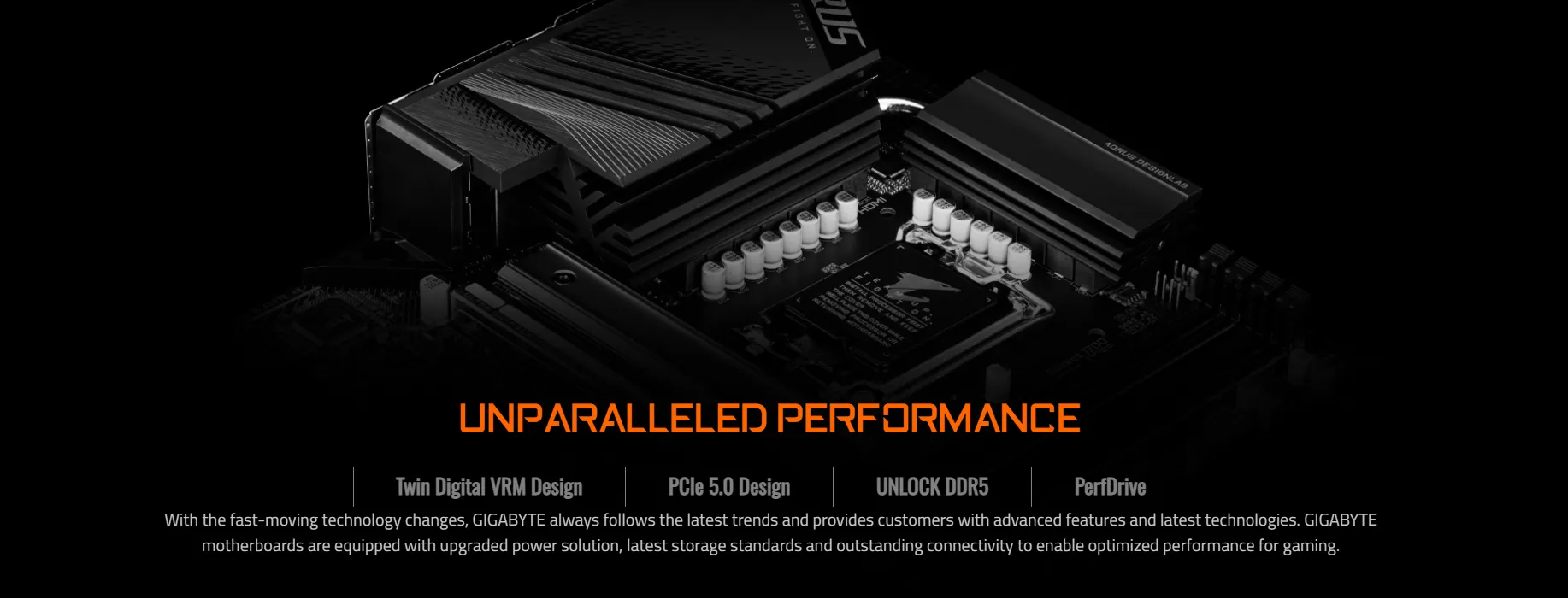

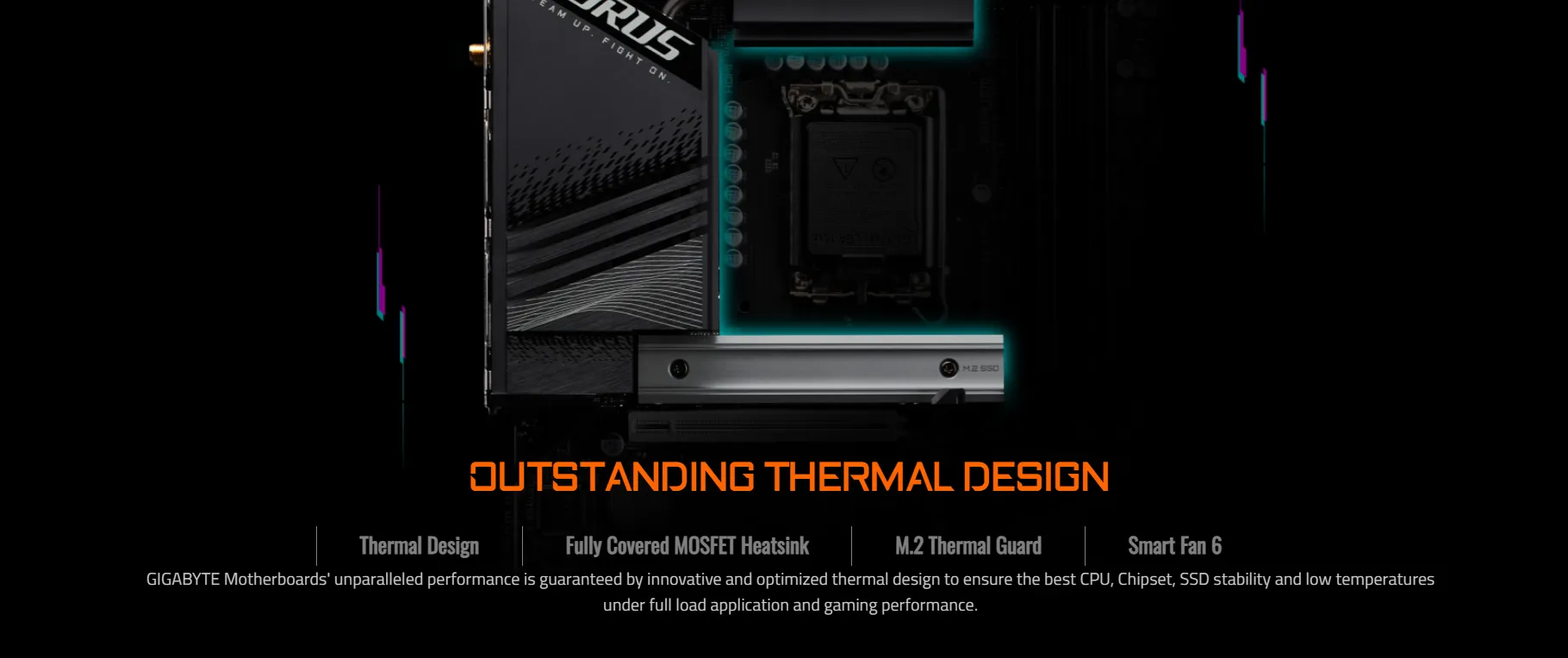

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution with 70A Power Stage Cutting-Edge Thermal Design: M.2 Thermal Guard III, Fully Covered MOSFET Heatsinks, PCIe Ultra Durable Armor, 6-Layer PCB Next Gen Connectivity: SMD PCIe 5.0, 4* PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C EZ-Latch: PCIe 5.0 EZ-Latch with a Quick Release & Screwless Design Fast Networking: 2.5GbE LAN, Intel WiFi 6E 802.11ax, 2T2R & BT5 with AORUS Antenna Dynamic Audio: High-End Audio Capacitor, Audiophile WIMA Capacitors Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU. Ascend the Throne of Gaming with the Z790 AORUS ELITE AX. The Z790 AORUS ELITE AX supports 13th and 12th Gen Intel Core Processors unparalleled performance. Unlock your gaming potential with GIGABYTE Z790 Motherboards. GIGABYTE Z790 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.

Brand: Gigabyte

Model: Z790M AORUS ELITE AX

Form Factor: Micro-ATX (24.4 x 24.4 cm)

Socket: LGA 1700

Chipset: Intel Z790

Supported CPUs: 14th / 13th / 12th Gen Intel Core™, Pentium® Gold, and Celeron®

Memory Support:

4 x DDR5 DIMM slots, up to 256GB

Supports DDR5 7600(O.C.) to 4000 MHz

Dual Channel Architecture

Supports ECC (non-ECC mode) & non-ECC Unbuffered DIMMs

XMP 3.0 Ready

Graphics Output:

1 x HDMI 2.1 (up to 4096x2160@60Hz)

1 x DisplayPort 1.2 (up to 4096x2304@60Hz)

Expansion Slots:

1 x PCIe 5.0 x16 (CPU)

1 x PCIe 4.0 x4 (Chipset)

AMD CrossFire™ Support

Storage:

3 x M.2 PCIe 4.0 x4 (2280 / 22110 support)

6 x SATA III 6Gb/s

RAID 0, 1, 5, 10 for both SATA & NVMe

USB Ports:

Rear: 1 x USB-C® 3.2 Gen 2x2, 1 x USB-A 3.2 Gen 2, 4 x USB-A 3.2 Gen 1, 4 x USB 2.0

Internal: 1 x USB-C® 3.2 Gen 2, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

LAN:

Realtek® 2.5GbE LAN

Wi-Fi & Bluetooth:

Intel® Wi-Fi 6E AX211 (2.4/5/6 GHz)

Bluetooth 5.3

Audio:

Realtek® ALC1200 7.1 HD Audio

Optical S/PDIF Out

Other Features:

Smart Fan 6 (hybrid fan headers with temp sensors & FAN STOP)

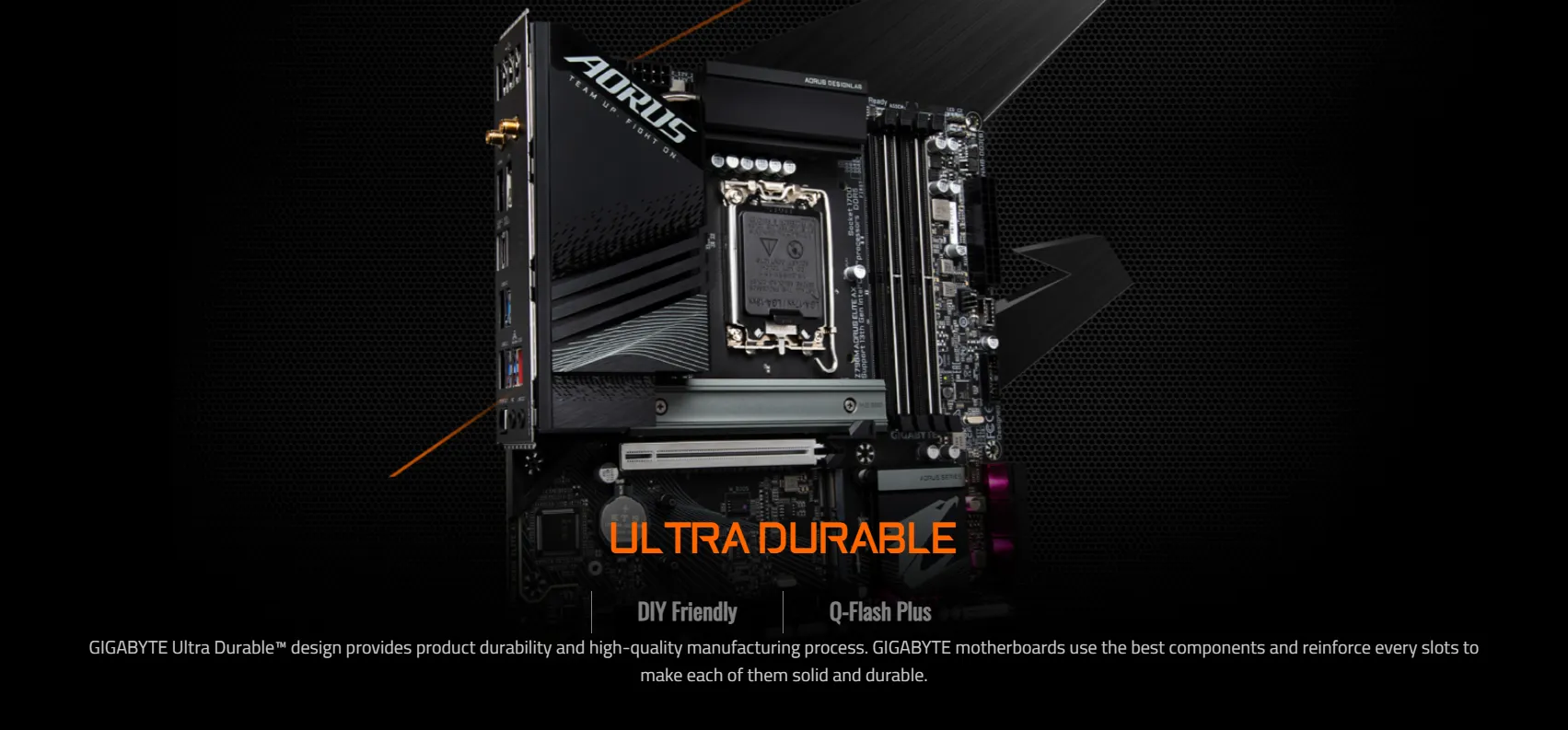

M.2 & PCIe EZ-Latch (tool-less design)

Q-Flash Plus (BIOS flashback w/o CPU/RAM/GPU)

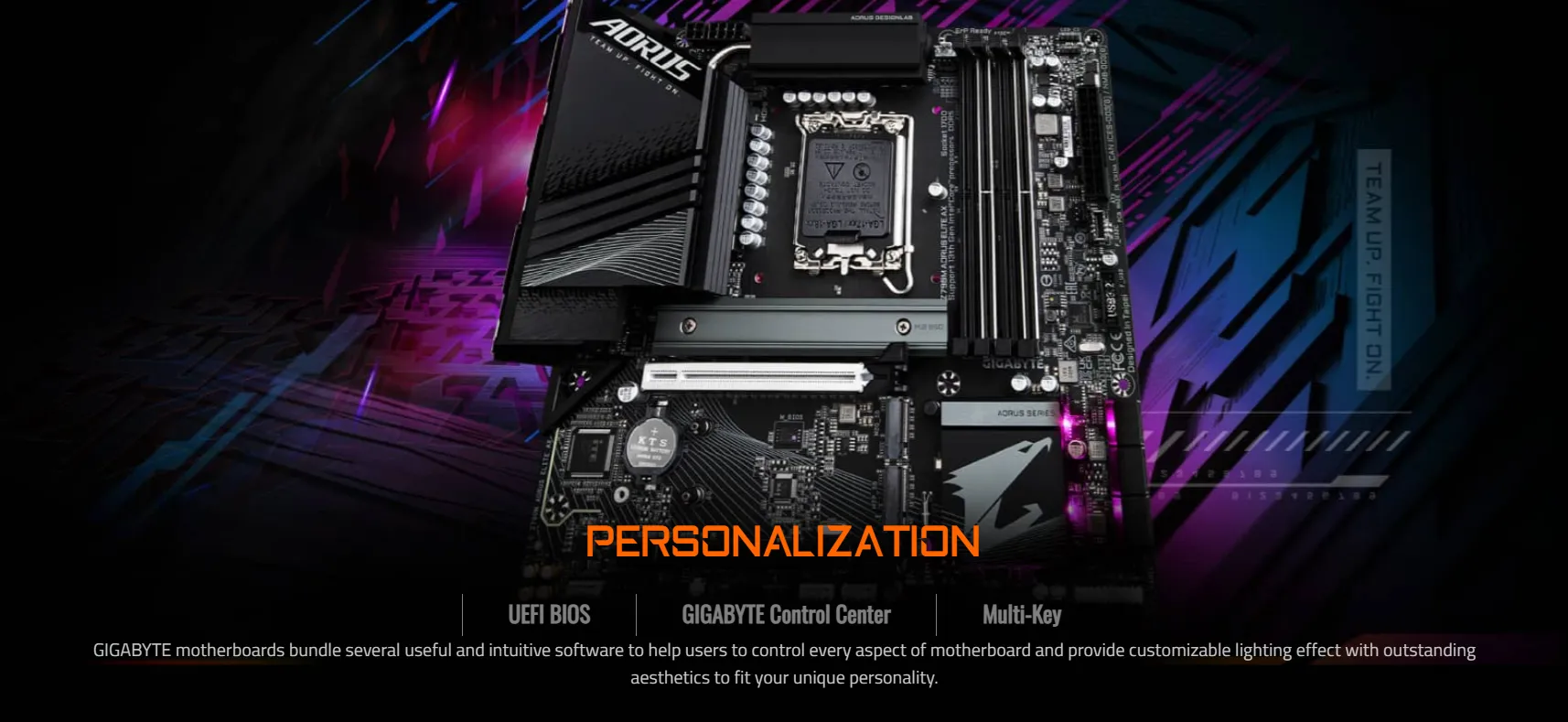

RGB Fusion (Addressable RGB & RGB headers)

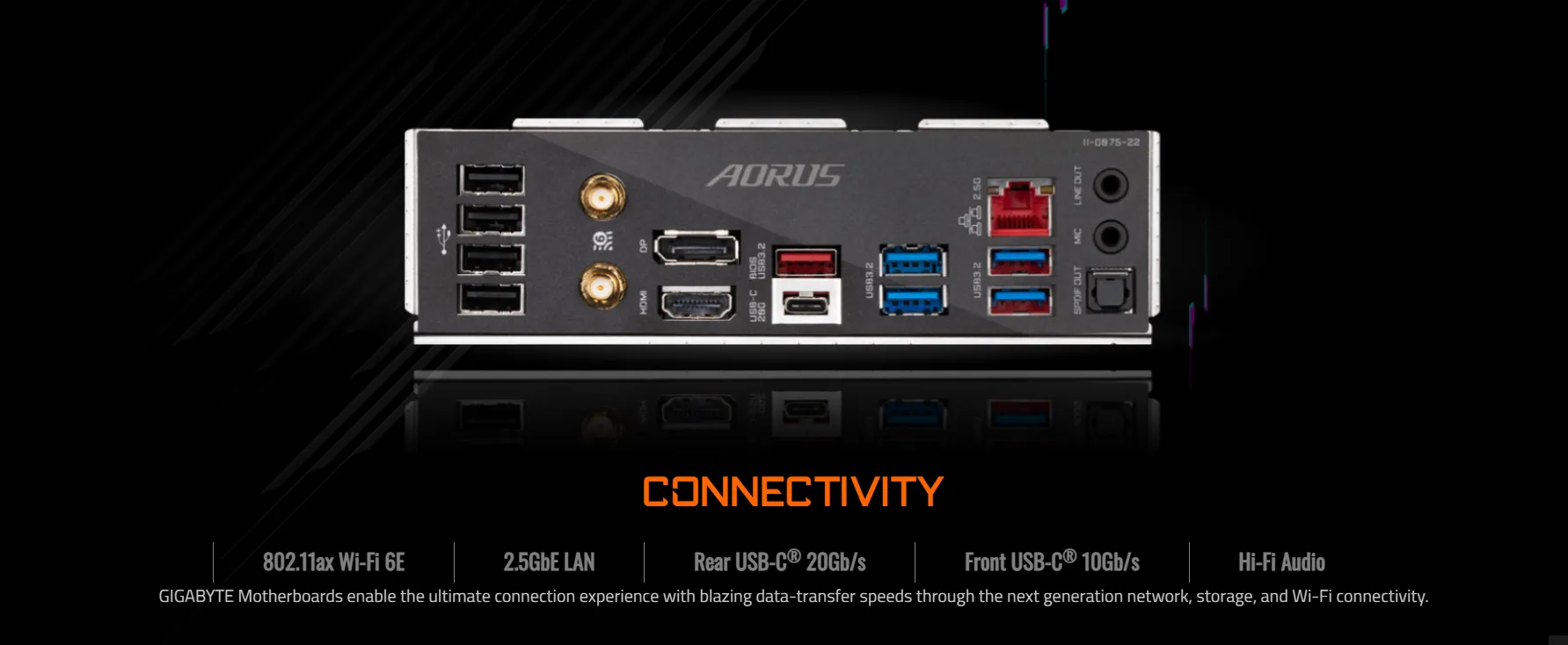

Rear I/O Ports:

1 x USB-C® 3.2 Gen 2x2

1 x USB-A 3.2 Gen 2

4 x USB-A 3.2 Gen 1

4 x USB 2.0

1 x HDMI

1 x DisplayPort

1 x RJ-45 2.5GbE

2 x SMA Antenna

1 x Optical S/PDIF

2 x Audio Jacks

Power Connectors:

1 x 24-pin ATX

1 x 8-pin ATX 12V

1 x 4-pin ATX 12V

Included Accessories:

Wi-Fi Antenna

SATA Cables

User Manual

OS Compatibility: Windows 11 / 10 64-bit
