GIGABYTE B650M Gaming Plus WiFi AM5 LGA 1718 AMD B650 M-ATX, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen 1 Type-C, Wi-Fi 6E, 2.5GbE LAN

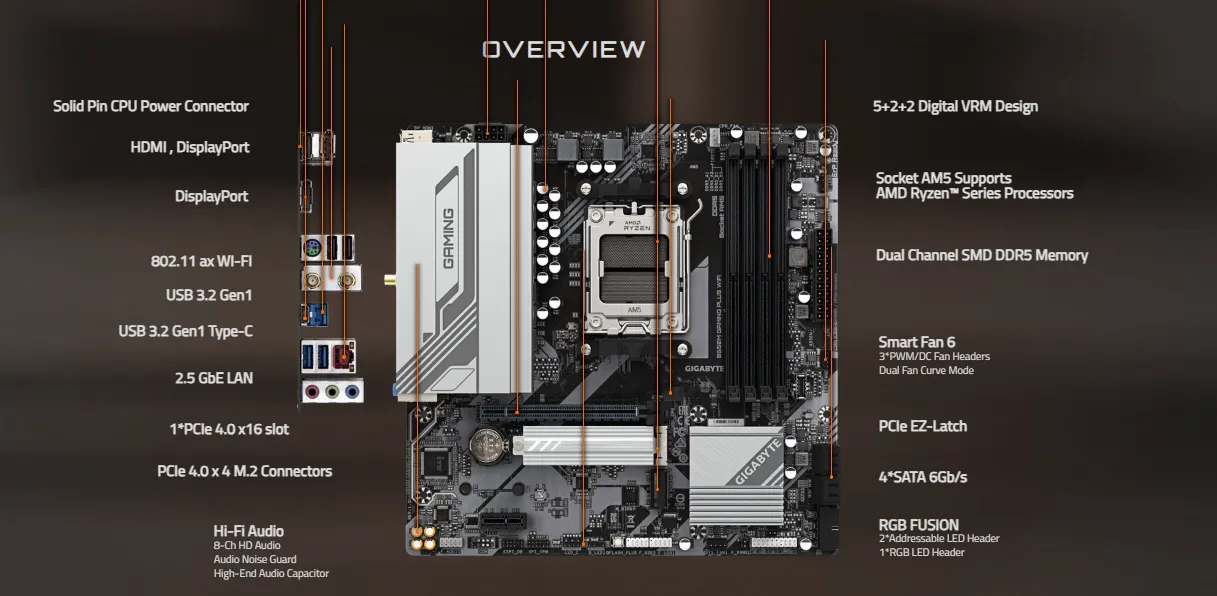

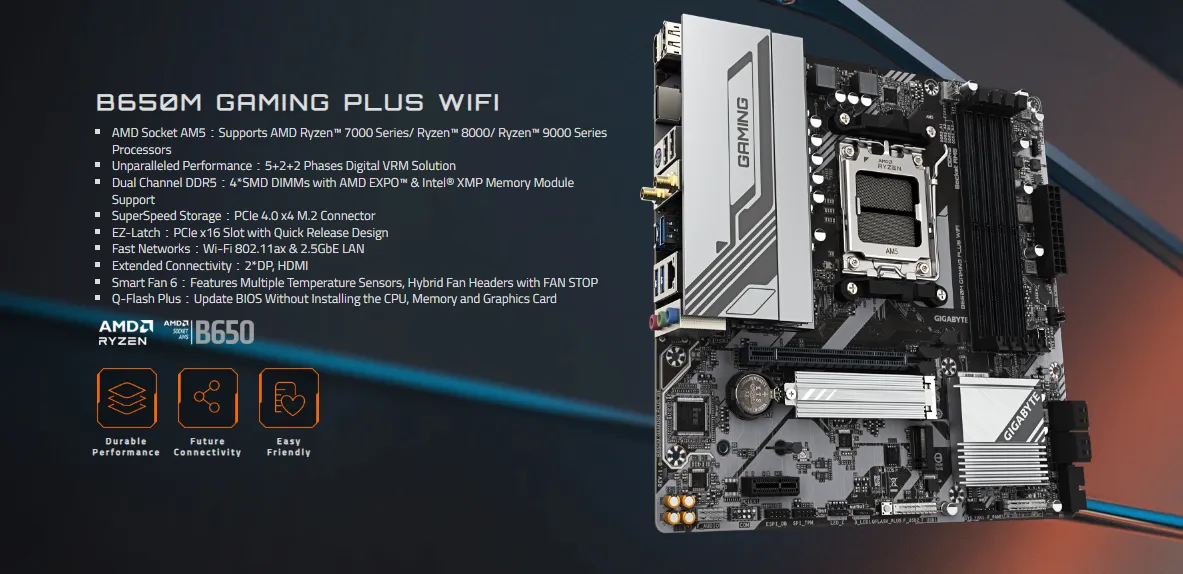

*B650M GAMING PLUS WIFI

- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors

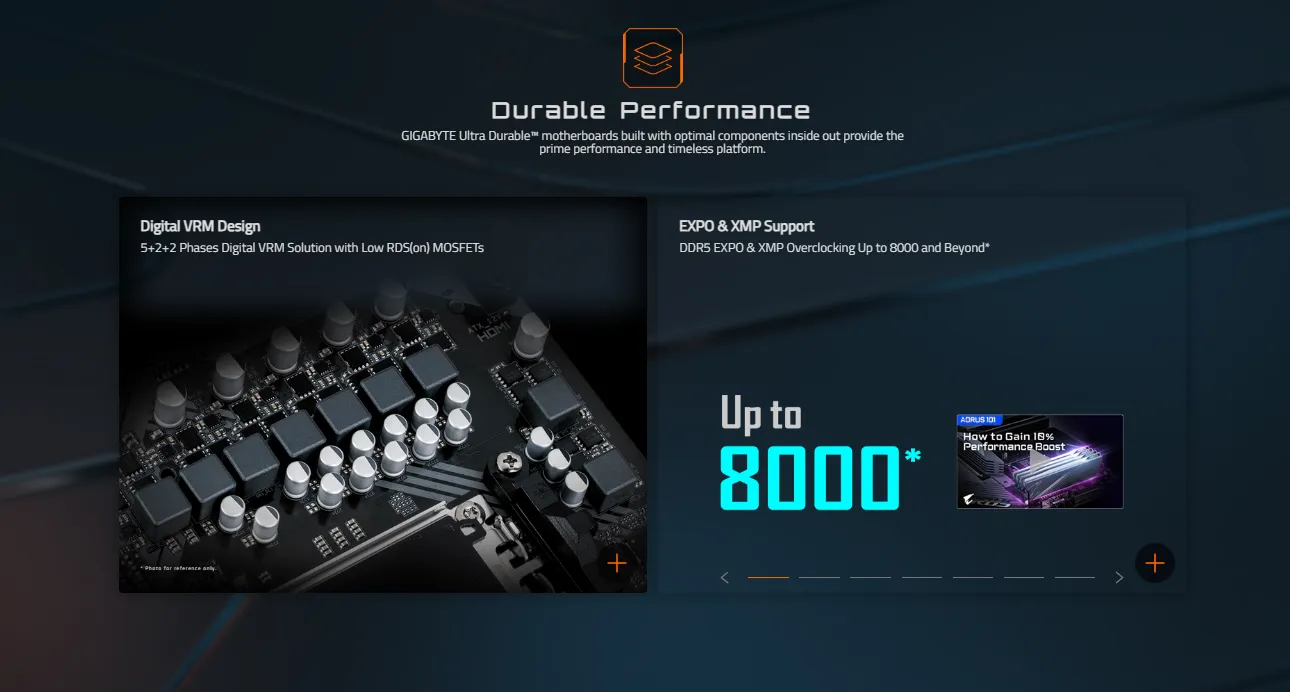

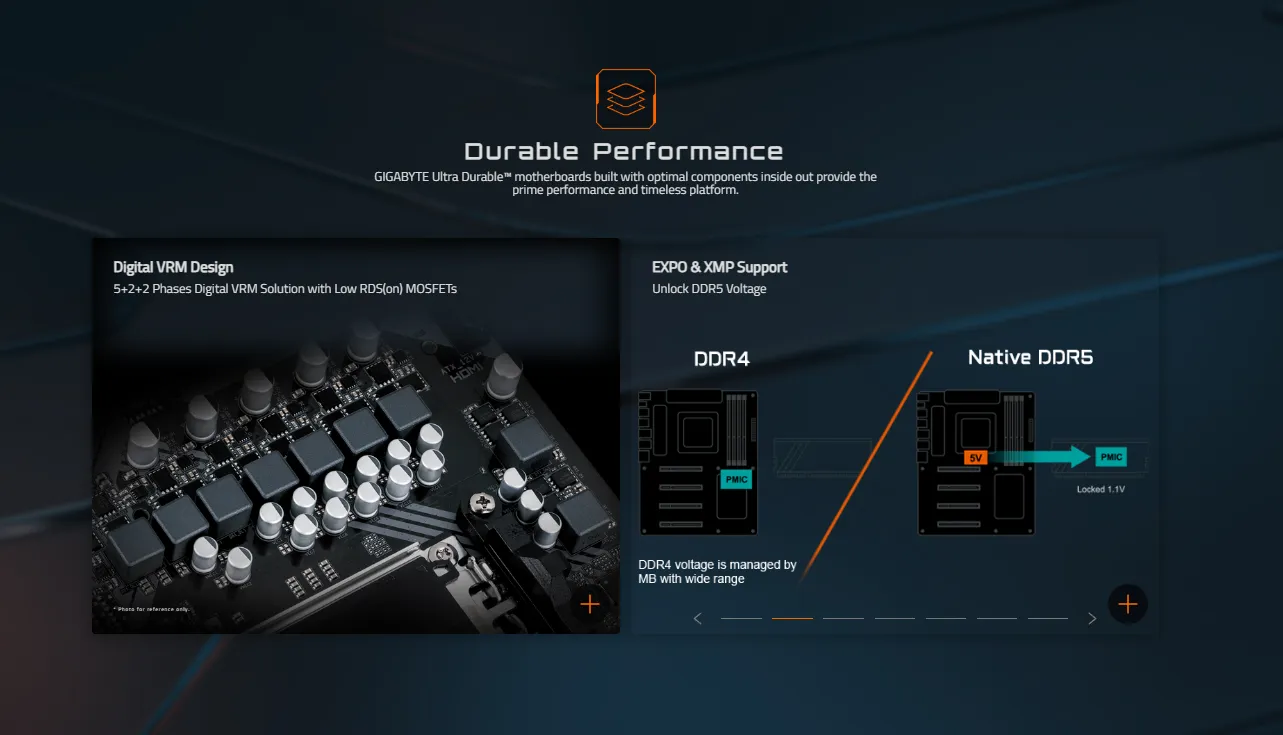

- Unparalleled Performance：5+2+2 Phases Digital VRM Solution

- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support

- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector

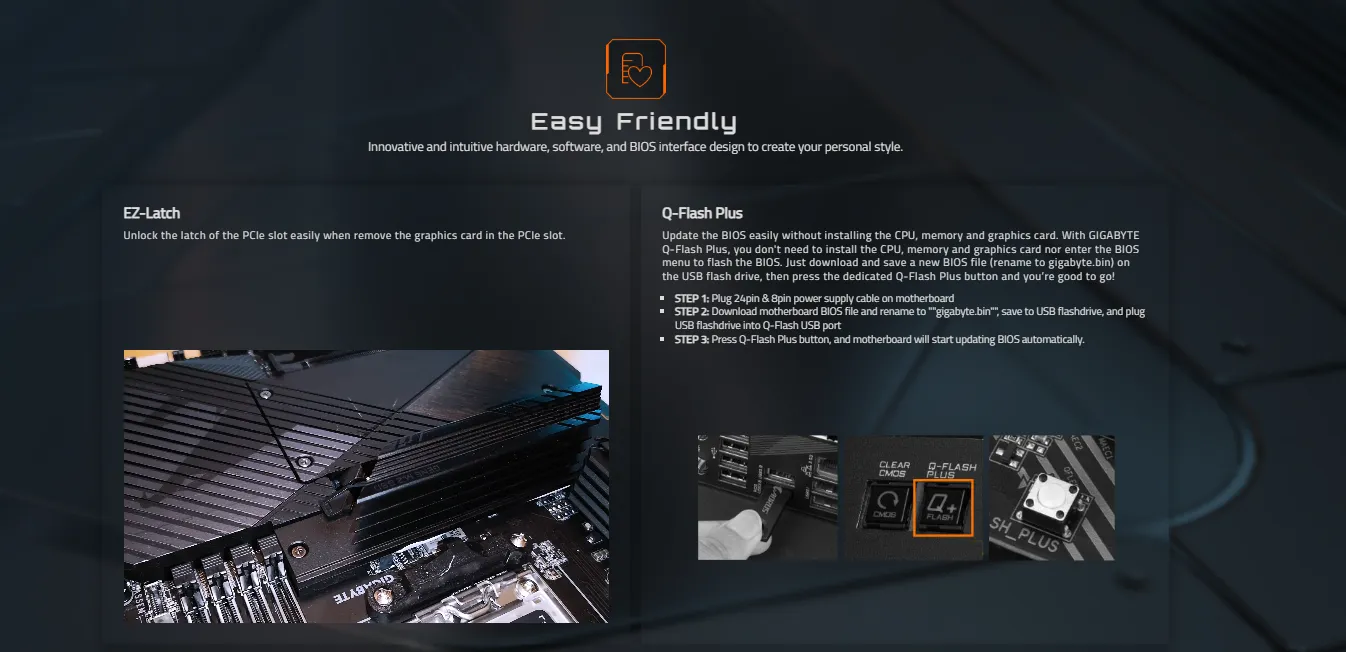

- EZ-Latch：PCIe x16 Slot with Quick Release Design

- Fast Networks：Wi-Fi 802.11ax & 2.5GbE LAN

- Extended Connectivity：2*DP, HDMI

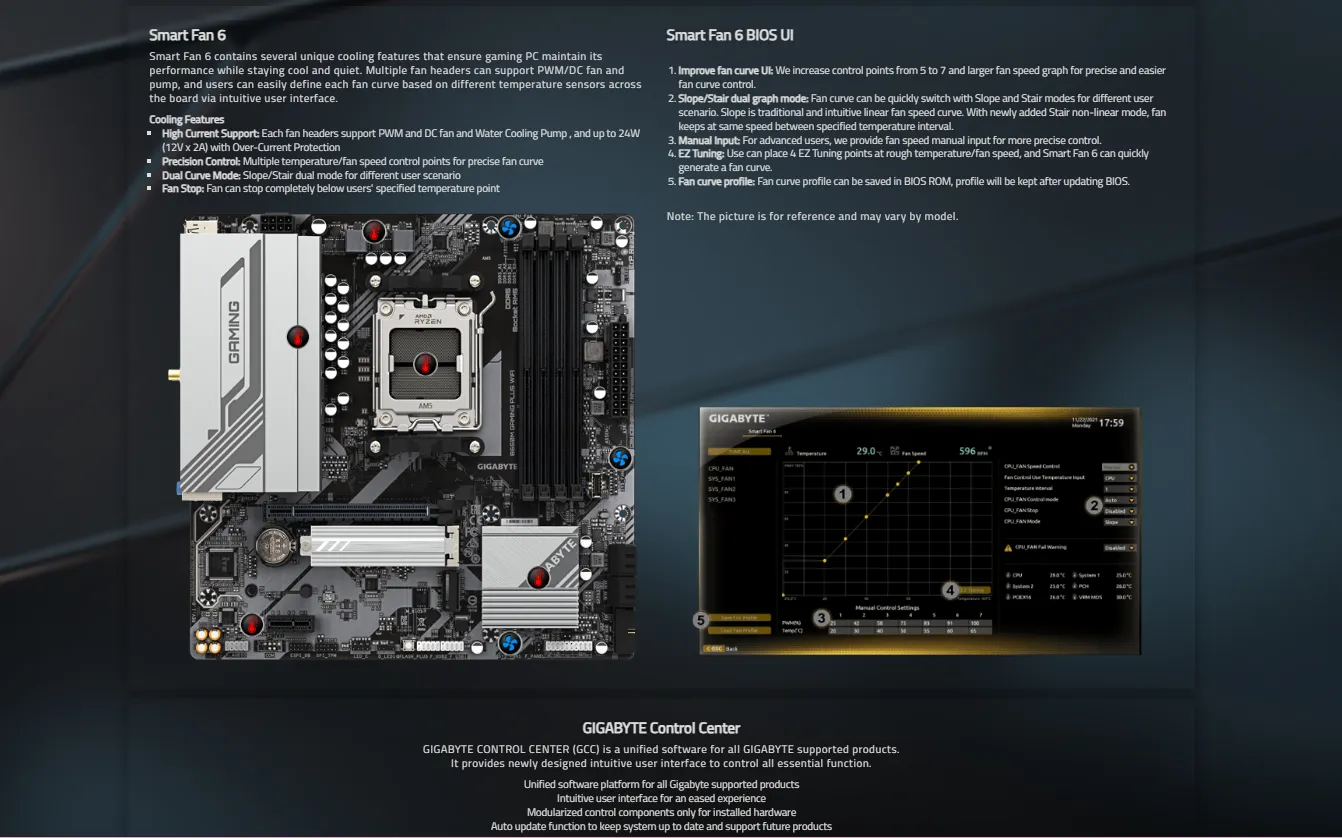

- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification

*CPU

Socket: AMD Socket AM5

Processor Support: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Refer to GIGABYTE's website for the latest CPU support list.)

*Chipset

AMD B650

*Memory

Memory Type: DDR5

Supported Speeds: 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s

DIMM Sockets: 4 x DDR5 DIMM

Max Capacity: Up to 256 GB (64 GB single DIMM capacity)

Architecture: Dual Channel

Supported Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

Profiles Supported: AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP)

(Note: CPU and memory configuration may affect supported memory types, data rate (speed), and number of DRAM modules. Refer to GIGABYTE's "Memory Support List".)

*Onboard Graphics

Processor: Integrated Graphics Processor with AMD Radeon™ Graphics support (Specifications may vary depending on CPU)

*Display Outputs:

2 x DisplayPorts:

- Maximum resolution: 3840x2160@144 Hz

- Support for DisplayPort 1.4 version.

1 x HDMI port:

- Maximum resolution: 4096x2160@60 Hz

- Support for HDMI 2.1 version and HDCP 2.3.

- Support for native HDMI 2.1 TMDS compatible ports.

Multi-Display Support: Up to triple-display simultaneously

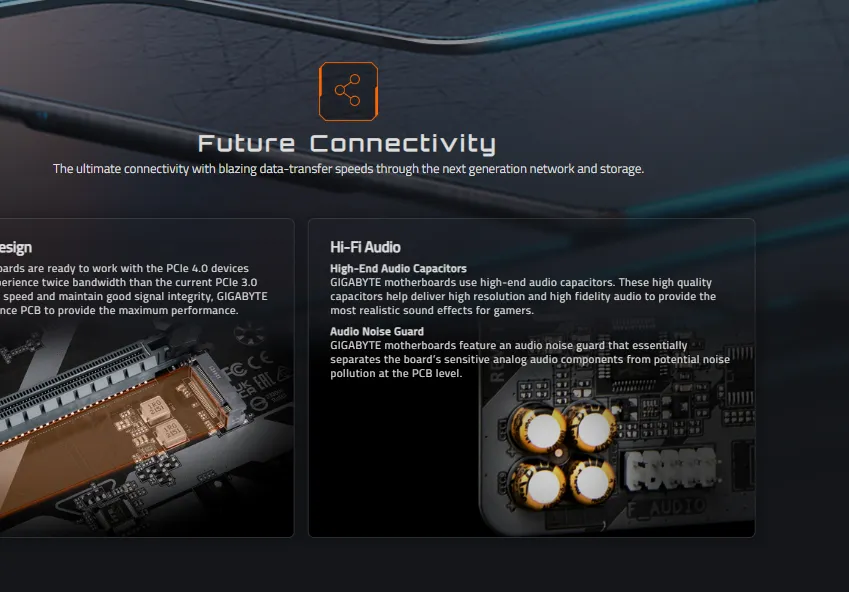

*Audio:

- CODEC: Realtek® Audio CODEC

- Audio Type: High Definition Audio

- Channel Configuration: 2/4/5.1/7.1-channel

*Expansion Slots

1 x PCI Express x16 slot (PCIEX16)

Integrated in the CPU.

- AMD Ryzen™ 7000 / 9000 Series Processors: Supports PCIe 4.0 x16 mode.

- AMD Ryzen™ 8000 Series - Phoenix 1 Processors: Supports PCIe 4.0 x8 mode.

- AMD Ryzen™ 8000 Series - Phoenix 2 Processors: Supports PCIe 4.0 x4 mode.

- Note: The PCIEX16 slot can only support a graphics card or an NVMe SSD.

1 x PCI Express x1 slot (PCIEX1)

- Integrated in the Chipset.

- Supports PCIe 3.0 and runs at x1.

*Storage Interface

1 x M.2 connector (M2A_CPU)

Integrated in the CPU.

Supports Socket 3, M key, type 2580 SSDs.

AMD Ryzen™ 7000 / 9000 Series Processors: Supports PCIe 4.0 x4/x2 SSDs.

AMD Ryzen™ 8000 Series - Phoenix 1 Processors: Supports PCIe 4.0 x4/x2 SSDs.

AMD Ryzen™ 8000 Series - Phoenix 2 Processors: Supports PCIe 4.0 x4/x2 SSDs.

1 x M.2 connector (M2C_SB)

- Integrated in the Chipset.

- Supports Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs.

4 x SATA 6Gb/s connectors

*RAID Support:

- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices.

- RAID 0, RAID 1, and RAID 10 support for SATA storage devices.

*Internal I/O Connectors

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 1 x CPU fan header

- 2 x system fan headers

- 2 x addressable LED strip headers

- 1 x RGB LED strip header

- 2 x M.2 Socket 3 connectors

- 4 x SATA 6Gb/s connectors

- 1 x front panel header

- 1 x front panel audio header

- 1 x USB Type-C® header, with USB 3.2 Gen 1 support

- 1 x USB 3.2 Gen 1 header

- 2 x USB 2.0/1.1 headers

- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

- 1 x Q-Flash Plus button

- 1 x reset jumper

- 1 x Clear CMOS jumper

*Back Panel Connectors

- 1 x PS/2 keyboard/mouse port

- 1 x USB Type-C® port, with USB 3.2 Gen 1 support

- 3 x USB 3.2 Gen 1 ports

- 2 x USB 2.0/1.1 ports

- 1 x HDMI port

- 2 x DisplayPorts

- 2 x SMA antenna connectors (2T2R) (1T1R)*

* Only for Realtek® Wi-Fi 6 RTL8851BE

- 1 x RJ-45 port

- 3 x audio jacks

*I/O Controller

iTE® I/O Controller Chip

*H/W Monitoring

- Voltage detection

- Temperature detection

- Fan speed detection

- Fan fail warning

- Fan speed control

*BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

*Unique Features

- Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

- Support for Q-Flash

- Support for Q-Flash Plus

Bundled Software: Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System:

- Support for Windows 11 64-bit

- Support for Windows 10 64-bit

Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
